Liquid Permeameter

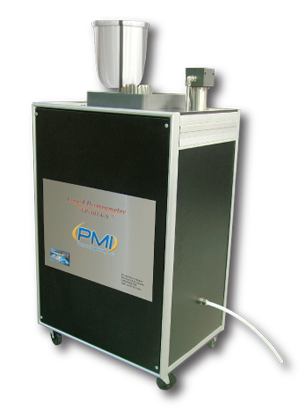

The PMI Liquid Permeameter is used to perform fast and accurate measurements of liquid permeability. PMI's Liquid Permeameter is user-friendly, features non-destructive testing, and accommodates a wide variety of samples. The Liquid Permeameter also allows testing under ambient or elevated temperatures to simulate actual operating conditions.

Permeability Range0 - 50 Darcies
Sample Size1.75" - 2.5" diameter
Pressure Range0 - 200 psi
Pressurizing Gas

clean, dry, compressed air

other nonflammable, noncorrosive gas

Pressure Transducer Range0 - 200 psi
Resolution1 in 60,000
Accuracy0.15% of reading
Power Requirements

110/220 VAC, 50/60 Hz

others available

Dimensions30" H x 19" W x 18.5" D
Weight100 lbs

    • Windows-based software handles all control, measurement, data collection, and report generation; complete manual control also possible
    • Compatible with Windows XP or higher
    • Real-time graphical test display depicts testing status and results throughout operation
    • Nondestructive testing
    • Length of test is approximately 10 minutes
    • Wide range of acceptable sample types and sizes
    • Multiple sample chambers available
    • Minimal maintenance required
    • A variety of materials including vegetables, meat, etc. can be tested
