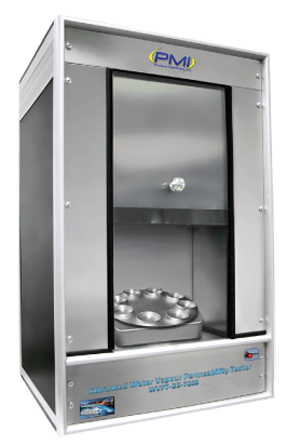

Advanced Water Vapor Permeability Tester

The PMI Advanced Water Vapor Permeability Tester is able to measure the amount of water vapor a material will transmit through its structure in a specified time. The tester consists of 8 containers with water reservoirs, a standard permeable fabric cover, sample holder ring and precision drive system. Our tester should work in a conditioning room or conditioning chamber. Wet-cup can be converted to do different tests. The PMI fully automatic Advanced Water Vapor Permeability Tester conforms to standards SATRA TM 172, ISO 14268, ISO 17699, ISO 20344, NF EN 13515, and DIN 53333.

Humidity Range:5% RH to 90% RH
Conforms to ASTM Standard E-96
Calibration:Using test standard films
WVTR Measuring Range:0.1 g/m3 .day - 10,000 g/m3 .day
Temperature Range:ambient 10°C to 45°C (can be upgraded up to 70°C)

    • Fabric and textile tester
    • Water vapour permeability testing machine
    • Fully automatic
    • Windows-based software handles all control, measurement, data collection, and report generation; complete manual control also possible
    • Comes with a PC computer equipped with real-time graphical LCD test display that depicts testing status and results throughout operation
    • Non-destructive testing
    • Minimal maintenance required
