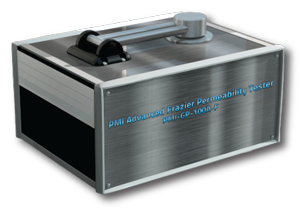

Frazier Permeability Tester

The PMI Advanced Frazier Permeability Tester is able to calculate fabric resistance (woven, knitted and non woven textile materials) to the passage of air like parachute. The machine provides fast and accurate measurement of gas permeability of solid, cylindrical and sheet samples. Featuring nondestructive testing and fast results, our tester is perfect for both R&D and quality control.

Sample Size5 cm2 to 100 cm2 test area
Pneumatic Clamping(180±30)N
Pressure Rangeup to 15" water column
Pressurizing Gas

clean, dry or compressed air

any other nonflammable and noncorrosive gas

Pressure Controller0.5 ± 0.01 inch water
Accuracy0.15% of reading
Mass Flow Transducer Range200 LPM
Power Requirements220 - 230 V, 50Hz
Weight25 kg
Permeability Measurementaccording to ISO 5636-3 and 5 standards

    • Fully automatic
    • Windows-based software handles all control, measurement, data collection, and report generation; complete manual control also possible
    • Comes with a PC computer equipt with real-time graphical LCD test display that
      depicts testing status and results throughout operation
    • Non-destructive testing
    • Length of test approximately 1 minute
    • Wide range of acceptable sample types and sizes
    • Multiple sample chambers available
    • Minimal maintenance required
    • Units in Frazier
    • Automatic, pneumatic sample clamping
    • Interchangeable test head

    Optional Features

    • Permeability measurement of high flow rate samples
    • Permeability of samples under compressive stress
    • Use of elevated test temperatures and a wide variety of gases
