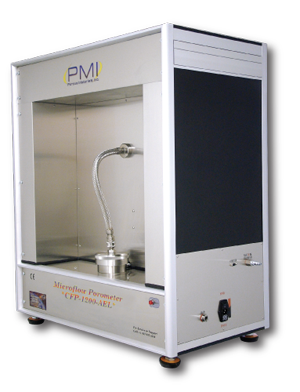

Microflow Porometer
The PMI Microflow Porometer is a Capillary Flow Porometer with the ability to measure pore structure and permeability in nearly impermeable materials. This instrument is user-friendly and fully automated. The Microflow Porometer is an asset in quality control and R&D environments.
| Pore Size Range: | 0.013 - 500 microns |
| Permeability Range: | 1x 10- 1x 10- (microflow in cc/sec/m/torr) |
| Sample Size: | 0.5” - 2.5” diameter |
| Pressure Transducer Range: | 0 - 500 psi |
| Resolution: | 1 in 20,000 |
| Accuracy: | 0.15% of reading |
| Pressurizing Gas: | Clean, dry, and compressed air or nonflammable and non-corrosive gas |
| Mass Flow Transducer Range: | 10 cm /min - 500,000 cm/min |
| Power Requirements: | 110/120 VAC, 50/60 Hz (Others Available) |
| Dimensions: | 30” H x 19” W x 18.5” D |
| Weight: | 100 lbs |
