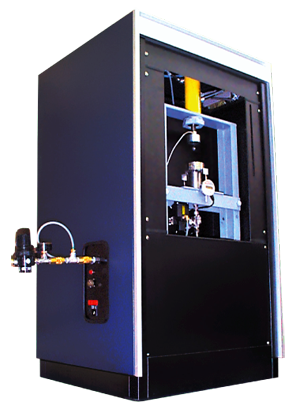

Cyclic Compression Porometer

The instrument applies cyclic stress on a sample and measures the pore structure characteristics after a desired number of cycles. The stress cycles and testing after any desired number of cycles are automatically continued.

Pore Size Range0.013 - 500 microns
Permeability Range1 x 10-³ - 50 darcies
Sample SizeSample Size1.75” - 2.5” diameter
Pressure Range0 - 500 psi
Pressurizing GasClean, dry, and compressed air or nonflammable and noncorrosive gas
Pressure Transducer Range0 - 500 psi
Resolution1 in 60,000
Accuracy0.15% of reading
Mass Flow Transducer Range10³/min - 500,000 cm ³/min
Power Requirements110/120 VAC, 50/60 Hz (Others Available)
Dimensions30” H x 19” W x 18.5” D
Weight100lbs

    • After desired number of stress cycles
      • Automatically interrupts analysis
      • performs tests
      • acquires data
      • continues to cyclically stress the sample
    • Very little operator involvement
    • Operator adjustable
      • stress limits in a cycle
      • number of cycles after which data is to be acquired
      • stress free duration for data acquisition
      • total number of cycles
