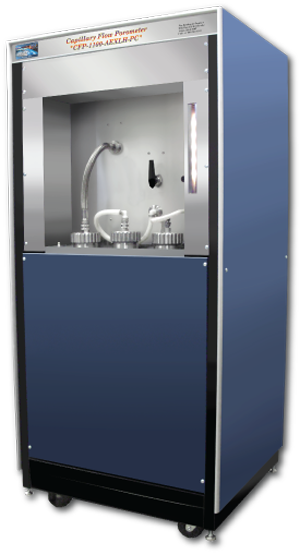

Cake Forming Porometer

This is a unique instrument - capable of creating cakes in-situ on filtration media and characterizing pore structure characteristics of filtration media with and without cake. The cake is able to be created under a wide range of test conditions. The instrument is used for cost effective analysis of cake filtration processes and development of appropriate technologies.

Pore Size Range:0.03 to 100 microns
Permeability Range:0.001 - 100 cc/min
Sample Size:

¼” - 2” diameter

5mm - 50mm

0” - 1” thick

Pressure Range:0 - 110 psi
Resolution:1 in 60,000
Accuracy:0.15% of Reading

    • 3 Sample Chambers for:
      • Pore Size Distribution
      • Cake Forming
      • Liquid Permeability
    • Capable of forming cakes under user specified:
      • pressure
      • flow rate
      • concentration
    • Cleaning of system to prevent clogging
    • Ability to measure pore structure characteristics, including:
      • Bubble point
      • Mean flow pore diameter
      • Pore distribution
      • Liquid permeability
    • Full automation for repeatable results obtainable without much operator involvement
