Bubble Point Analyzer

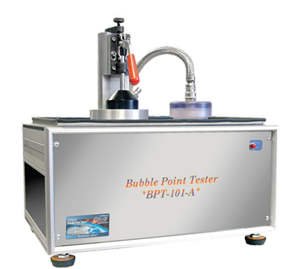

The PMI Bubble Point Tester provides a fast and accurate measurement of a material's largest through-pore (bubble point). User-friendly and fully-automated, the Bubble Point Tester produces reproducible and precise results.

Pore Size Range0.1 - 500 microns (Models with pore size down to 0.013 microns also available)
Sample Size1.75" - 2.5" diameter
Sample ChambersCustomized available
Maximum Range0 - 100 psi
Pressurizing GasClean, dry, compressed air or nonflammable, non-corrosive gas
Pressure Transducer Range0-100 psi Absolute
Resolution1 in 10,000
Accuracy0.15% of reading
Mass Flow Transducer Range0 - 10 cc/minute
Power Requirements110/220 VAC, 50/60 Hz (Others available)
Dimensions30" H x 19" W x 18.5" D
Weight100 lbs

    • Windows-based software handles all control, measurement, data collection, and report generation; complete manual control also possible
    • Compatible with Windows 95 or higher
    • Real-time graphical test display depicts testing status and results throughout operation
    • Non-destructive testing
    • Length of test approximately 1 minute per sample
    • Wide range of acceptable sample types and sizes
    • Multiple sample chambers available
    • Minimal maintenance required
