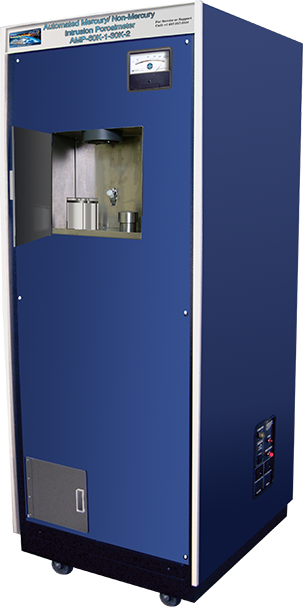

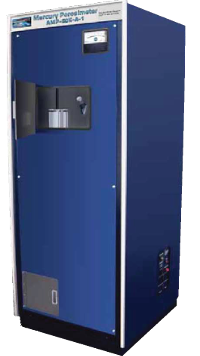

Automated Mercury Intrusion Porosimeter
Versatile and accurate instrument used to determine properties such as pore size distribution, total pore volume, surface area, and bulk and absolute densities of solid and powder samples. Unlimited user-defined data-points, automated data collection and reduction, and the least mercury exposure of any porosimeter on the market.
| Pore Size Range: | 0.003 to 900 microns |
| Transducer Hysteresis | +- 0.05% of full scale |
| High Pressure Range: | Atmospheric temp. to 60,000 PSI |
| Low Pressure Range: | Vacuum to 50 PSI |
| Pressure increment mode: | Step and continuous |
| Accuracy: | ±1% of full scale or better of intrusion volume, ±0.1mm resolution |
| Pressure Range: | Vacuum to 60,000 PSI |
| Pressure Transducer Range: | 0 - 60,000 PSI |
| Pressure Transducer Accuracy: | ±0.15% |
| Transducer Hysteresis: | ±0.10% |
| Resolution: | 1 in 60,000 |
| Power Requirements: | 220-230 VAC, 50 Hz (Others available) |
| Dimensions: | 72" H x 30" W x 30" D |
| Weight: | 200Kg |
| Sample Cell Volume: | 2 ml to 15 ml (Minimum) with sample dimensions up to 25mm diameter (minimum) x 25mm length (minimum) |
| Sample dimensions: | Up to 25mm diameter (minimum) x 25mm length (minimum) |
| 2 Low Pressure Ports & 2 High Pressure ports: | Low and high pressure port are combined into one. |
